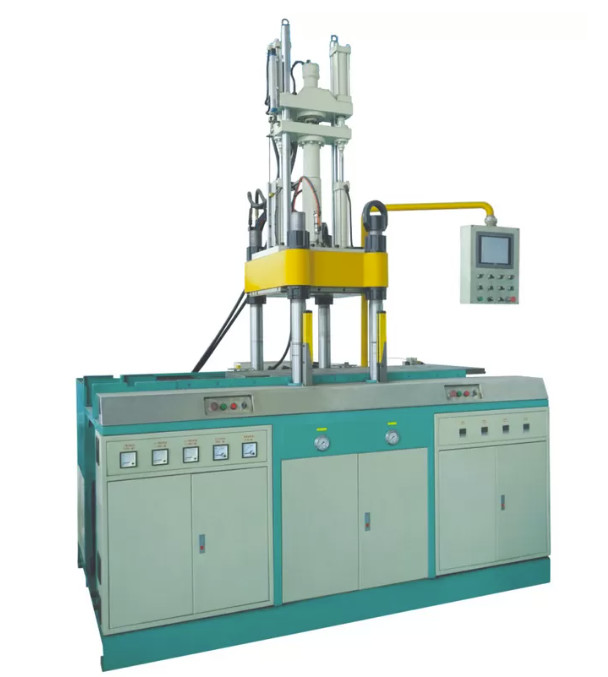

China Factory High Quality LCD Display LSR Injection Molding Machine For Maternal and Infant Products

Guangzhou Juchuan Machinery Co., Ltd.
Contact Now

China Factory High Quality LCD Display LSR Injection Molding Machine For Maternal and Infant Products

Brand Name : Juchuan

Model Number : JC-LV-1

Certification : ISO9001:2015

Place of Origin : China

MOQ : 1set

Price : USD 21800-40000one set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100 Set/Sets per Month

Delivery Time : 45 days

Packaging Details : container

Automatic : Yes

Color : Green

Key Selling Points : Competitive Price

Max Clamping Force : 120 Tons

Motor : Servo Motor

Motor Power : 22 KW

Mould Opening Stroke : 100-500mm

Opening Stroke : 300mm

Plastic Processed : silicone

Plunger Diameter : 450mm

Power : 11~20Kw

Style : VERTICAL

Type : Injection molding machine

Usage : Baby Silicone Teether

Useful : LSR machine for silicone products

Contact Now

China Factory High Quality LCD Display LSR Injection Molding Machine For Maternal and Infant Products
China Factory High Quality LCD Display LSR Injection Molding Machine For Maternal and Infant Products
China Factory High Quality LCD Display LSR Injection Molding Machine For Maternal and Infant Products

Application Products

China Factory High Quality LCD Display LSR Injection Molding Machine For Maternal and Infant Products

China Factory High Quality LCD Display LSR Injection Molding Machine For Maternal and Infant Products

China Factory High Quality LCD Display LSR Injection Molding Machine For Maternal and Infant Products

Machine Features

* Big injection pressure, mainly for liquid silicone products with multi cavities or big volume of silicone.

* Servo control system to save energy up to 40%.

* Mainly for all types of electric cable auxiliary parts.

Technical Parameters

Model 100LV-1 200LV-1 300LV-1
Clamping Force (Ton) 100 200 300
Max. Injection Rate (cc/s) 300 300 400
Injection Pressure (kgf/cm²) 1000 1000 1200
Injection Volume (cc) 2000 3000 5000
Platen Size (mm) 400*400 550*560 700*700
Plunger Diameter (mm) Φ250 Φ360 Φ450
Plunger Stroke (mm) 350 400 600
Min. Mold Thickness (mm) 51 110 110
Heating Plates Distance (mm) 300-400 500-600 600-700
Mold Opening Type 2RT-3RT-4RT Upper Hanging Die-Lower Hanging Die
Max. Operating Pressure (Mpa) 20 20 20
Heating Power (KW) 10 15.3 24
Gross Weight (Ton) 6 7.3 11
Machine Size L*W*H (mm) 2400*1650*3200 2600*2000*4000 2750*2265*4200

Company Information

* Guangzhou JuChuan Machinery Co. Ltd. has been established in 1997 with a covering area of 20,000 square meters and over 20 sets of processing equipment. Our major products are including silicone rubber injection molding machine, vacuum compression molding machine, hydraulic hot press machine, injection molds, customized equipment and auxiliary equipment like robot arms.

* Our products have gained the national patents with efforts of the esteemed engineers, the advanced R&D ability, and the long-term technical cooperation with German company. We have a completed quality management system and excellent after-sale service system based on the standard GB/T19001-2016/ISO9001-2015. With the idea of "Quality is the BASIC to create value", we commit to provide the best technical support and sales services for all our customers.

* Nowadays, our products export to Germany, Russia, Ukraine, Turkey, Thailand, Vietnam, Malaysia, Indonesia, India, Cambodia, Saudi Arabia, Sudan, South Africa, Nigeria, Kenya, Morocco, Pakistan, Iran, Tunisia, Egypt, Israel, Afghanistan, Kazakhstan, Guatemala and Mexico.

Our main products

Silicone rubber injection molding machine

Vertical hydraulic rubber injection machine

Horizontal silicone rubber injection machine

Liquid silicone injection molding machine

Vacuum compression machine

Silicone rubber hot press machine

Trade Show

China Factory High Quality LCD Display LSR Injection Molding Machine For Maternal and Infant Products

China Factory High Quality LCD Display LSR Injection Molding Machine For Maternal and Infant Products

Our service

1. Free technology training: you can come for inspection and training for free.

2. Free Installation and debugging: Our engineers will teach you about the installation and debugging for free.

3. After-sales service: We will supply the free repairmen on this machine for one year, but will supply the maintenance lifetime. (The service is only for natural damage)

4. Online remote control for software problems, whatspp or wechat for video checking.
