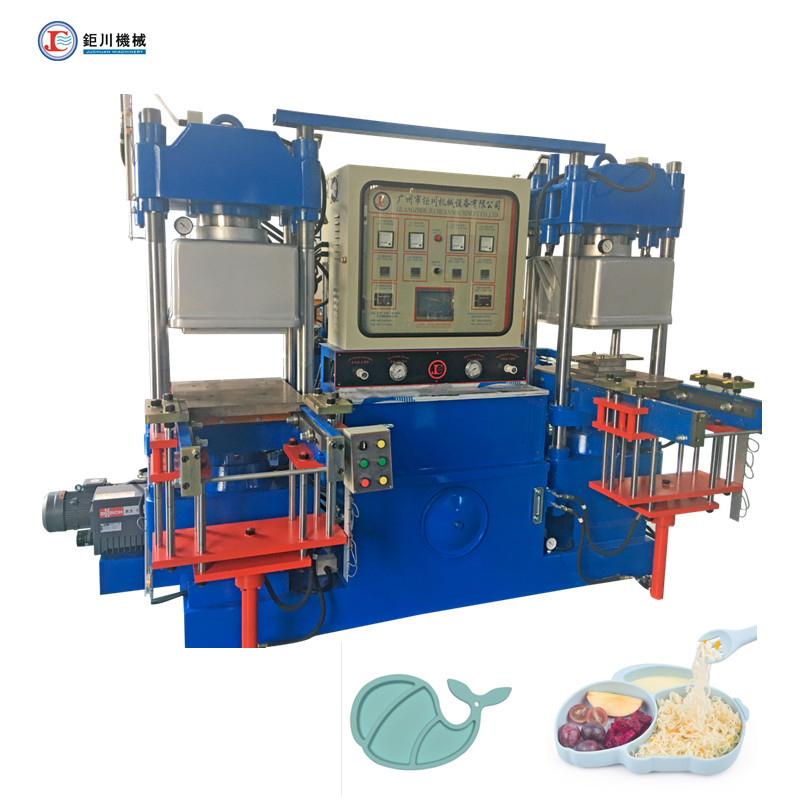

Vacuum Compression Molding Machine for making silicone products baby products kitchenware products

Name: Vacuum Compression Molding Machine for making silicone products baby products kitchenware products
Brand: JUCHUAN
Price: 21800 USD

Vacuum Compression Molding Machine for making silicone products baby products kitchenware products Manufactures

MOQ : 1 set

Price : USD 21800-40000one set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100 Set/Sets per Month

Delivery Time : 45 days

Brand Name : JUCHUAN

Model Number : JC-VF

Certification : ISO9001:2015

Place of Origin : CHINA

Packaging Details : Fixed with hard straps

Clamp Force(Ton) : 100-800

Upper Platen Size(mm) : 380*400 - 1600*1100

Lower Platen Size(mm) : 400*460-1750*1300

Plunger Strok(mm) : 200 - 350

Heating Plates Distance(mm) : 200 - 350

Tie Bar Distance(mm) : 490*230 - 1840*570

Mold Opening Type : 2RT-3RT-4RT-Track

Max. Operating Pressure(MPa) : 20

Motor Power(KW) : 5.5*2-11*2

Heating Power(KW) : 7.2*2-90*2

Vacuum Pump Power(KW) : 3 - 3.2

Total Power(KW) : 28.4 - 104

Gross Weight(Ton) : 5 - 15.45

Machine Size L*W*H(mm) : 2500*2450*2100 - 3360*2970*2850 or Customized

Contact Now

Vacuum Compression Molding Machine

for making silicone products baby products kitchenware products

Advanced Vacuum Compression Molding Machine Technology:

Special insertion device: can be customized according to customer requirements. It is mainly used to lock the second and third layers without separation when the three-layer mold is opened.
There is a separate pressure gauge on the vacuum cover to show the pumping pressure, which is convenient for timely observation of the pumping state.
Mainly applicable to: rubber silicone fittings with complex structure and difficult exhaust.

Vacuum plate vulcanizing machine Features:

using dual motor double pump double oil circuit System design, two working positions are independently controlled and operated independently.
the front top opening and closing moldIn the way, the mold is pushed out from the clamping mechanism, and the mold is opened in front of the machine to facilitate the taking of the product;
the use of high vacuum vacuum cover design, the mold can be in a near-complete vacuum environment, improve mold exhaust performance;
The vacuum cover is completed above the vacuum of -650mmHG within 4 seconds. It is not suitable for forming, and the precision finished product is most suitable;
Reduce the vulcanizing time, improve the products qualified rate, improve the working efficiency of the machine.

Vacuum plate vulcanizing machine application:

O-ring, pressing, keyboard, roller, medical drug plug, shockproof products, black rubber products, daily necessities, gaskets, conductive products, electronic products, etc.
Do not apply to the production of long and large insulator products or other products. When the rubber injection machine is opened, the opening is upward, which is suitable for lifting and removing the product by driving.

Main Technical Parameters:

Model	Unit	300VF
Clamping Force	Ton	300
Upper Platen Size	mm	680*680
Lower Platen Size	mm	700*800
Plunger stroke	mm	300
Distance of Thermo-plate	mm	300
Distance of Tie bar	mm	785*380
Die sinking type	2RT-3RT-4RT-Track
Max Operating Pressure	Mpa	20
Motor Power	hp	102(7.5KW2)
Electric Heating Power	Kw	24*2
Vacuum Pump Power	Kw	3*2
Total Power	Kw	69
Gross weight	Ton	15.45
Dimension	mm	L3360W2970H2850

Other Vacuum Compression Machine Parameters:

Model	Unit	200VF	250VF	300VF	400VF	500VF
Clamping Force	Ton	200	250	300	400	500
Upper Platen Size	mm	510*510	600*600	680*680	800*800	950*950
Lower Platen Size	mm	550*560	650*600	700*800	850*850	1000*1000
Plunger stroke	mm	250	250	300	350	350
Distance of Thermo - plate	mm	250	250	300	350	350
Distance of Tie bar	mm	640*310	745*310	785*380	940*450	1105*475
Die sinking type	2RT-3RT-4RT-Track
Max Operating Pressure	Mpa	20	20	20	20	20
Motor Power	hp	10*2	10*2	10*2	15*2	15
Electric Heating Power	Kw	13.5*2	15.3*2	24*2	26.4*2	36
Vacuum Pump Power	Kw	3	3*2	3*2	3*2	4
Total Power	Kw	45	51.6	69	84.8	49
Gross weight	Ton	7.8	11	15.45	18	14.5
Dimension	mm	293025002350	319029302495	336029702850	365030502900	146036003150

Product show

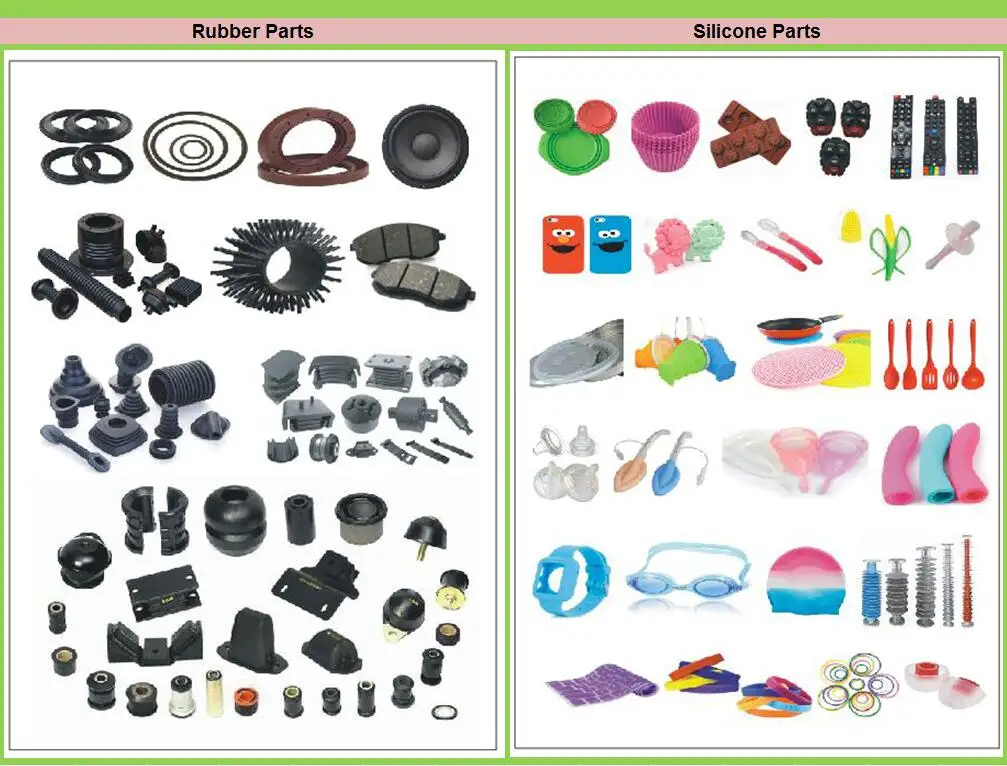

what product our machine can make?

Vacuum Compression Molding Machine for making silicone products baby products kitchenware products

Silicone Moulding Machine 69kw

OEM Silicone Moulding Machine

Silicone Compression Molding Machine 69kw
